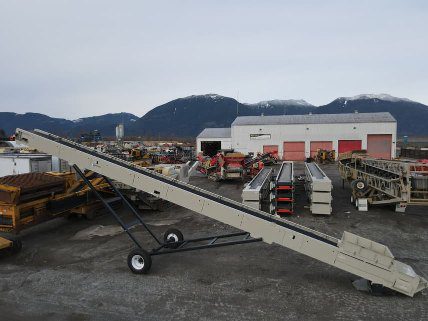

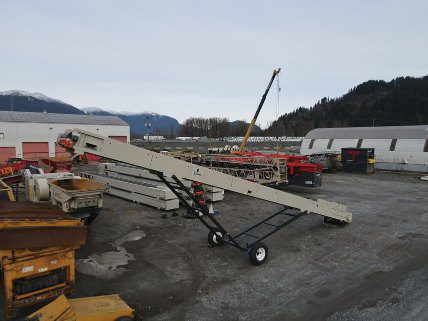

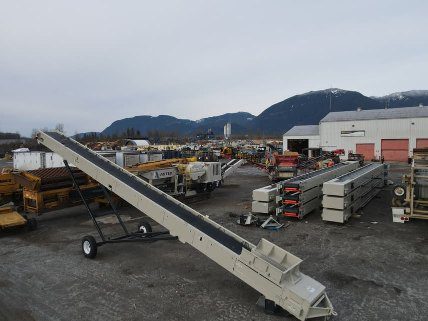

2022 Astec 47-3660CU Stacking Conveyor (#997)

Conveyor Frame:
-Lattice Frame with heavy duty chord and intermediate angles.

Idlers:-All standard idlers are CEMA B – 5” diameter
-35 degree troughing idlers (3 roll) on 4’ spacing
-20 degree idlers (3 roll) at feed point close spacing
-Flat steel return idlers (single roll) on 10’ spacing Receiving Trough: 5’ 6” long with adjustable rubber flashing.

Belt Drive:
-Head end drive
-Class I, Dodge shaft mount reducer w/backstop
-V-belt, motor mounts and guards
-Grooved rubber lagged head
-Steel wing tail
-12” Screw take-up

Belt:
-2 ply 220 PIW, 1/8” x 1/16” cover with mechanical fasteners
