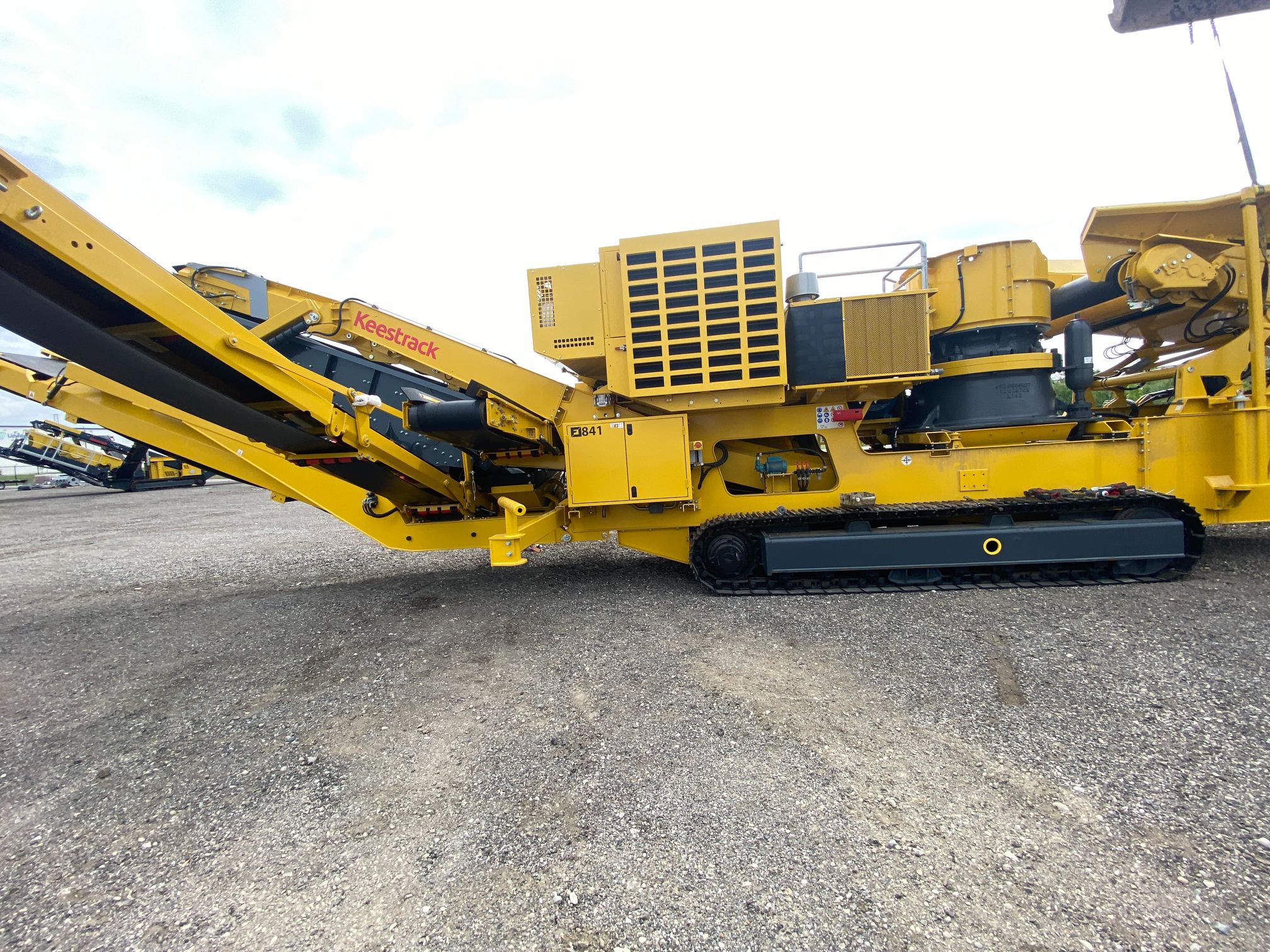

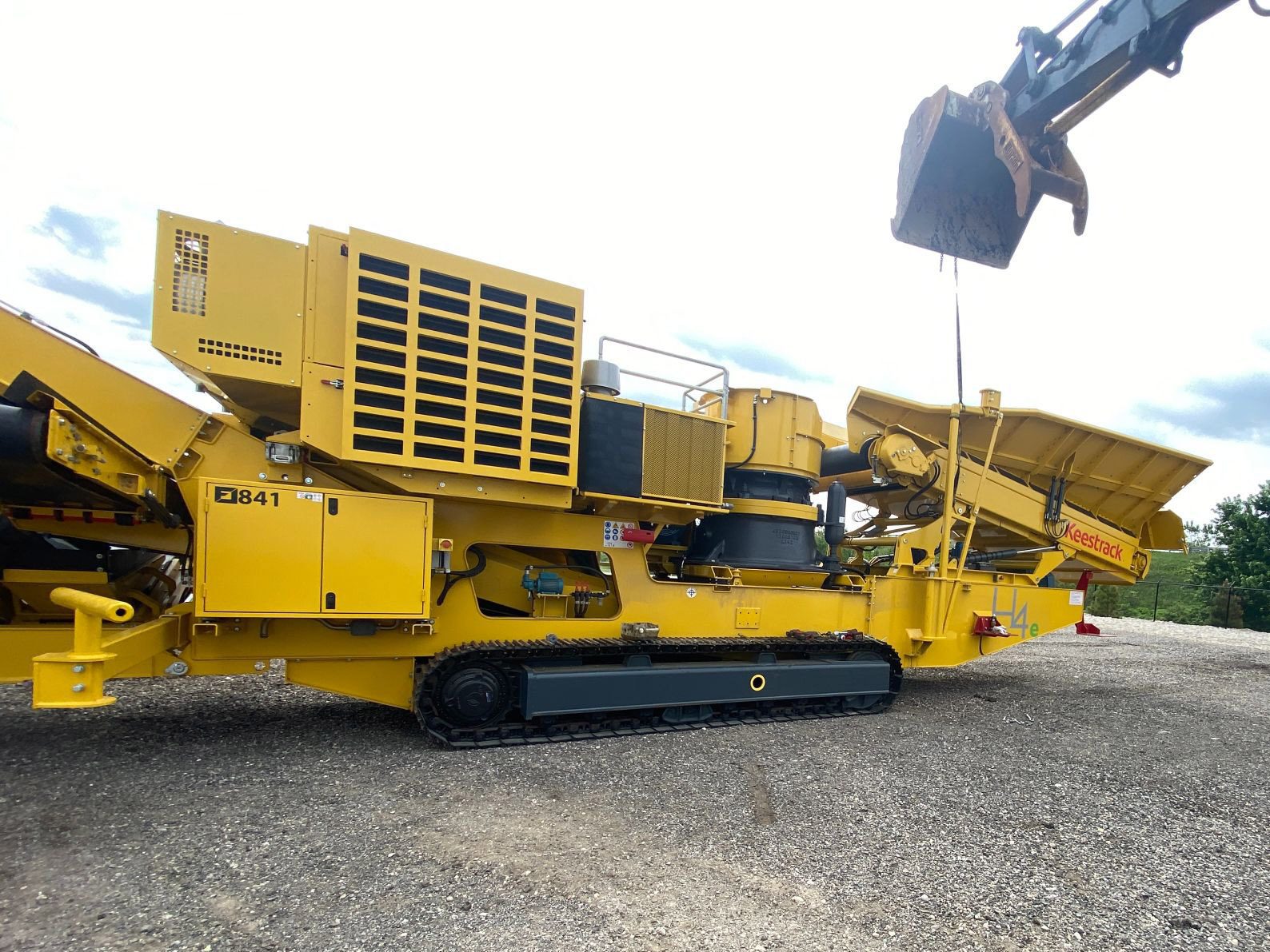

2021 Keestrack H4e Cone Crusher (#841)

Used in primary, secondary, tertiary, or quaternary crushing, this machine is designed to tackle the toughest rock and ore. This machine is designed with a 36” Sandvik hydrocone and can handle feed sizes up to 7” in size with a throughput of 250 tonnes per hour.

• Feed size up to 185 mm (7″)
• C.S.S (6 – 38 mm (2/10” – 1 5/10”))
• Capacity up to 250 tph
• Hopper 8 m³
• Diesel / electric drive
• Optional 3-deck screen (1,500 x 3,600 mm (5’ x 12’))
• Effective screen area 5.4 m² on each deck with return conveyor
• Removable engine / genset compartment

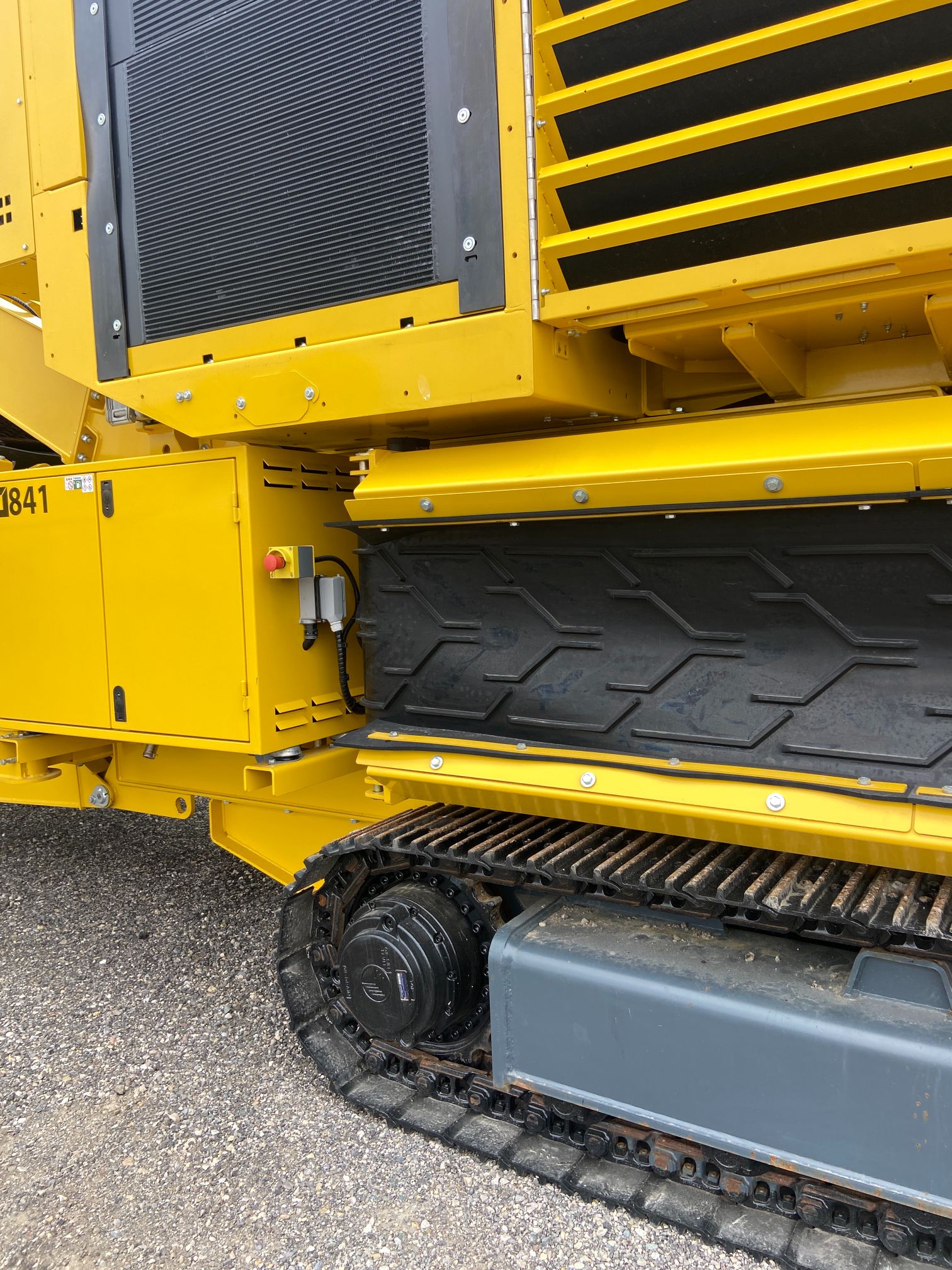

• 2-speed track drive
• Metal detector
• Pressurized cone to avoid overload
• 3-deck screen with oversize return
• Green power electric drive
• Steel hydraulic
• HB 450 steel hopper and wear plates
